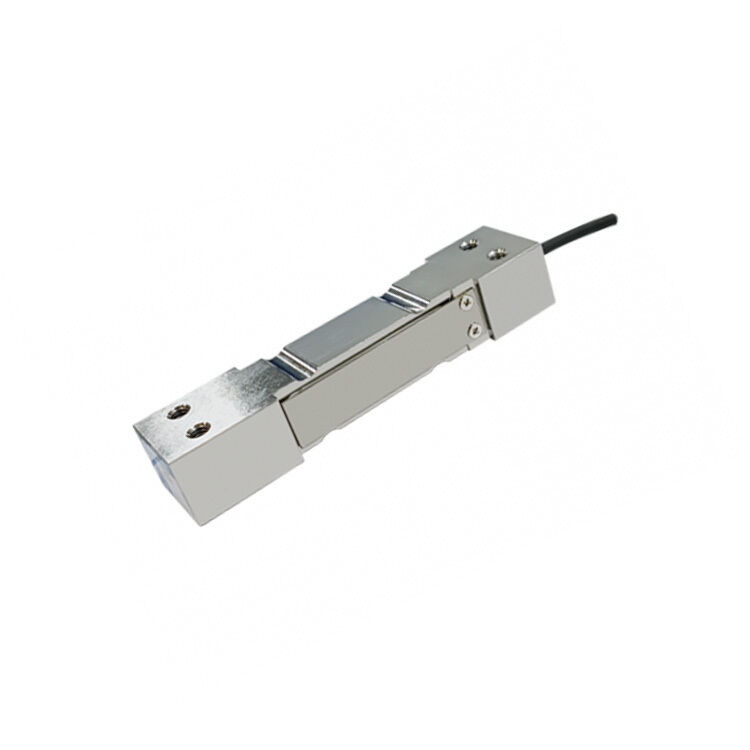

Stainless steel load cell shear beam sensor 10-50kg
Stainless Steel Load Cell (10-50kg)
The NA1/R is a low profile design, low to medium capacity stainless steel shear beam load cell ideal for a wide range of weighing scales. The stainless steel weighing sensor is suitable for retail scales and industrial weighing systems. Particularly robust for long-term use in harsh industrial environment.
Key Features:
Stainless steel construction
Special industrialized surface treatment
High protection class, low profile design, easy to install
Effective resistance to corrosive substances
Particularly robust for long-term use in harsh industrial environment
Usage & Applications:
Pricing scales, belt scales and various weighing equipment;
Food, medical and chemical industries;
Industrial weighing systems, etc.
Dimension:
Specification:
| Rated Capacities |
10,20,35,50(kg) |
| Rated Output |
2.0 mV/V±10% |
| Zero Balance |
±0.0200 mV/V |
| Non-linearity |
0.02 %R.O. |
| Hysteresis |
0.02 %R.O. |
| Repeatability |
0.02 %R.O. |
| 30mins Creep |
0.02 %R.O. |
| 30mins Return |
0.02 %R.O. |
| Safe Overload |
150 %R.O. |
| Ultimate Overload |
200 %R.O. |
| Temperature Effect On Output |
0.002 %R.O./℃ |
| Temperature Effect On Zero |
0.003 %R.O./℃ |
| Input Impedance |
390±15 Ω |
| Output Impedance |
350±5 Ω |
| Insulation Impedance |
≥5000 MΩ/(50VDC) |
| Recommended Excitation |
5~12 VDC |
| Maximum Excitation |
15 VDC |
| OperatingTemperatureRange |
-20~60 ℃ |
| Construction |
Stainless Steel |
| Protection Class |
IP67 / IP68 |
| Cable |
φ4 ×2 m |
| Recommended Platform Size |
350×400 mm |
| Mode of Connection |
Red(EXC+),Black(EXC-),Green(SIG+),White(SIG-) |
