Alloy Steel Load Cell Sensor 500kg-50T Capacity for Tank Weighing

جزئیات محصول:

محل منبع:	چین
نام تجاری:	RJ
گواهی:	CE/ROSE
شماره مدل:	RJ

اطلاعات دقیق

محل منبع:

چین

نام تجاری:

گواهی:

CE/ROSE

شماره مدل:

ظرفیت:

500kg ، 1t ، 2t ، 3t ، 5t ، 10t ، 20t ، 30t ، 50t

مواد:

لودسل فولاد آلیاژی

حساسیت:

2.0 / 3.0 ± 0.1 میلی ولت بر ولت

حداکثر بار بیش از حد:

200 ٪ RO

درخواست:

توزین مخزن ، وزن گیری سیلو ، وزن و کنترل قیف

درجه IP:

IP67

برجسته کردن:

High Light

برجسته کردن:

alloy steel load cell sensor,500kg load cell for tank weighing,50 ton capacity load cell

500kg load cell for tank weighing

50 ton capacity load cell

اطلاعات تجاری

مقدار حداقل تعداد سفارش:

قیمت:

$98-300

جزئیات بسته بندی:

کارتن یا جعبه چوبی

زمان تحویل:

5 تا 8 روز کاری

شرایط پرداخت:

L/C، D/A، D/P، T/T، وسترن یونیون

قابلیت ارائه:

2000 PC/ماه

توضیحات محصول

500kg 1ton 2ton 3ton 5ton 8ton10Ton Load Cell Module For Tank weighing

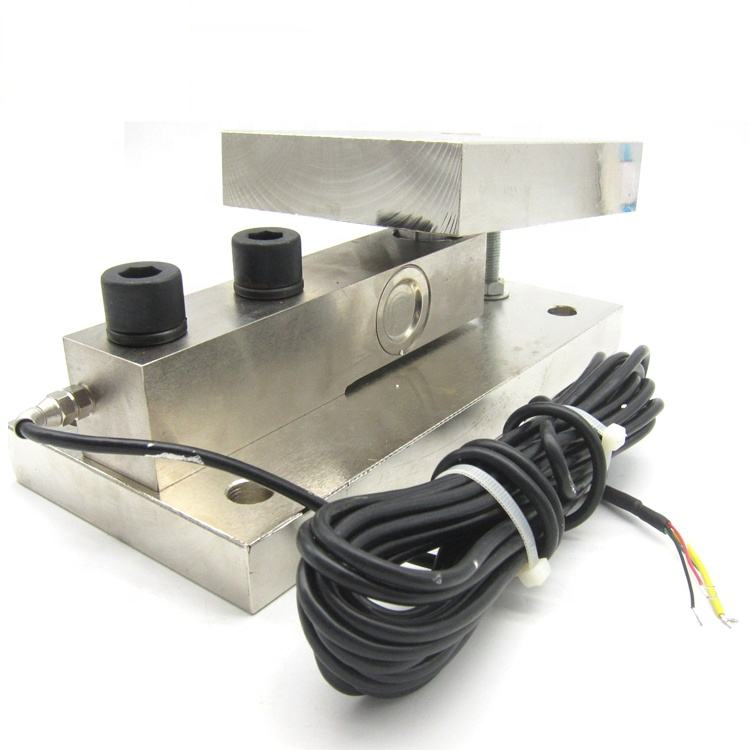

Alloy Steel Load Cell Sensor 500kg-50T Capacity for Tank Weighing 0

Features:

Model: RJ (with mounting module)

Rated load: 0.5-50T

Precision: C2 / C3

Safe overload:150%

Ultimate overload: 200%

Material: Alloy steel

Apply to: Truck scale or silo / tank / bin weighing system

Parameters:

Application	Floor scale
Model	RJ
Capacity	0.5t, 1t, 2t, 3t, 5t, 8t, 10t, 20t, 30t, 50t
rated output	2.0±0.004mV/V
Accuracy class	C2 C3
maximum number of verification intervals	2000 Nmax 3000 Nmax
Minimum loadcell cerification intervals	Emax/5000Vmin Emax7500 Vmin
Combined error	≤±0.030 % RO ≤±0.020 % RO
Creep	0.02%RO/30min
Temp. effect on sensitivity	0.0016 %RO/℃ 0.0014 %RO/℃
Temp.effect on zero	0.005%RO/℃ 0.002%RO/℃
Zero balance	±1.0 %RO
Input resistance	365±10ohm 1050 ±10 ohm (optional)
Output resistance	350±3 ohm 1000 ±5 ohm (optional)
insulation resistance	5000 MΩ(50V)
Recommended excitation voltage	8-15V
Compensated temperature range	-10-+40℃
operating temperature range	-35-+80 ℃
safe overload	120 %RO
Ultimate overload	200%RO
loadcell material	alloy steel -IP67 stainless steel
Connecting cable	0.5~3Ton: Φ5.7x3.5 m / 5t~8t: Φ5.7 x 8 m / 10t~50t: Φ6.3x13 m
Method of connecting wire	Red- input+, black- Input-. Green- Output+, White- output -

Alloy Steel Load Cell Sensor 500kg-50T Capacity for Tank Weighing 1

Alloy Steel Load Cell Sensor 500kg-50T Capacity for Tank Weighing 2

Packing & Transport

Alloy Steel Load Cell Sensor 500kg-50T Capacity for Tank Weighing 3

FAQ

Q: How can I get the quotation?
Please send your inquiry to us.
Click 'Contact Supplier' icon which is on the right-side or write down your requirement at the bottom of this page.

Q: What detailed information do I need to provide if I want to place an order?

We need to know the following information:
Capacity, Usage and other related parameters you need.

Q: Do you have any discount?
Yes, we take bulk order, if you buy large QTY, please send us inquiry, we can discuss the price.

Q: Can I get samples?
Yes, if you have the follower orders, we could offer the samples or free samples for you.

Q: How about the quality of the products?
We have the certification of CE and RoHs , also we are the Alibaba's verified supplier, you don't have to worry about this.

Q: When will you arrange the production?
We will arrange the production immediately after receiving your payment.

Q: Could you provide me the shortest lead time?
We have materials in our stock, if you really need, let's discuss and we will try our best to satisfy you.
