3-50Ton Tension Load Cell Sensor for Crane Scale IP67

جزئیات محصول:

محل منبع:	چین
نام تجاری:	RJ
گواهی:	CE/ROSE
شماره مدل:	RJ

اطلاعات دقیق

محل منبع:

چین

نام تجاری:

گواهی:

CE/ROSE

شماره مدل:

مواد:

فولاد آلیاژی یا فولاد ضد زنگ

کلاس دقت:

0.03 ٪ FS

ایمن بیش از بار:

150٪ RO

درجه IP:

IP67

تجهیزات جانبی:

انتهای میله چشم ، D-Shackle

درخواست:

مقیاس جرثقیل اندازه جرثقیل دسته ای

برجسته کردن:

High Light

برجسته کردن:

3-50Ton tension load cell,crane scale load sensor,IP67 waterproof load cell

crane scale load sensor

IP67 waterproof load cell

اطلاعات تجاری

مقدار حداقل تعداد سفارش:

قیمت:

$30-38

جزئیات بسته بندی:

کارتن یا جعبه چوبی

زمان تحویل:

5 تا 8 روز کاری

شرایط پرداخت:

L/C، D/A، D/P، T/T، وسترن یونیون

قابلیت ارائه:

2000 PC/ماه

توضیحات محصول

3Ton 5Ton 10Ton 30Ton 50Ton batch weigher crane scale hopper scale tension load cell sensor

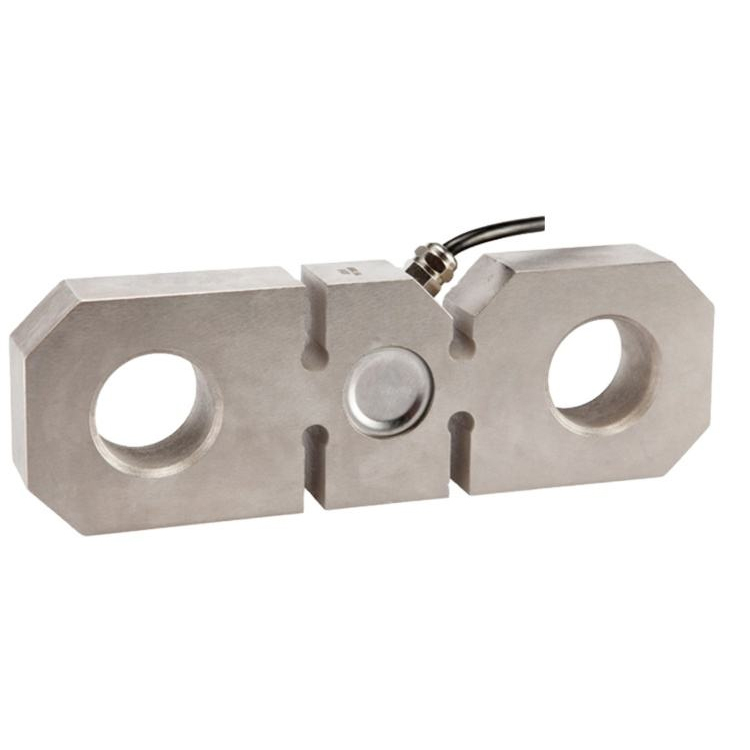

3-50Ton Tension Load Cell Sensor for Crane Scale IP67 0

Capacity: 3ton—100ton

Material: Alloy steel

Application: crane scale, force measurement

Parameter:

Application	Crane scale
Model	RJ
Capacity	3t, 5t, 8t, 10t, 12t, 15t, 30t, 100t
Output Sensitivity	1.5±0.1 1.0±0.1(100t)
Accuracy	0.03% F.S
Temperature effect on Span	0.0016% RO/℃
Temperature effect on zero	0.003% RO/℃
Input resistance	365±10Ω
Output resistance	350±5Ω
Compensated temp. range	-10~+40℃
Operating temp. range	-35~+80℃
Recommend Excitation	10~15VDC

3-50Ton Tension Load Cell Sensor for Crane Scale IP67 1

Packing & Transport

3-50Ton Tension Load Cell Sensor for Crane Scale IP67 2
