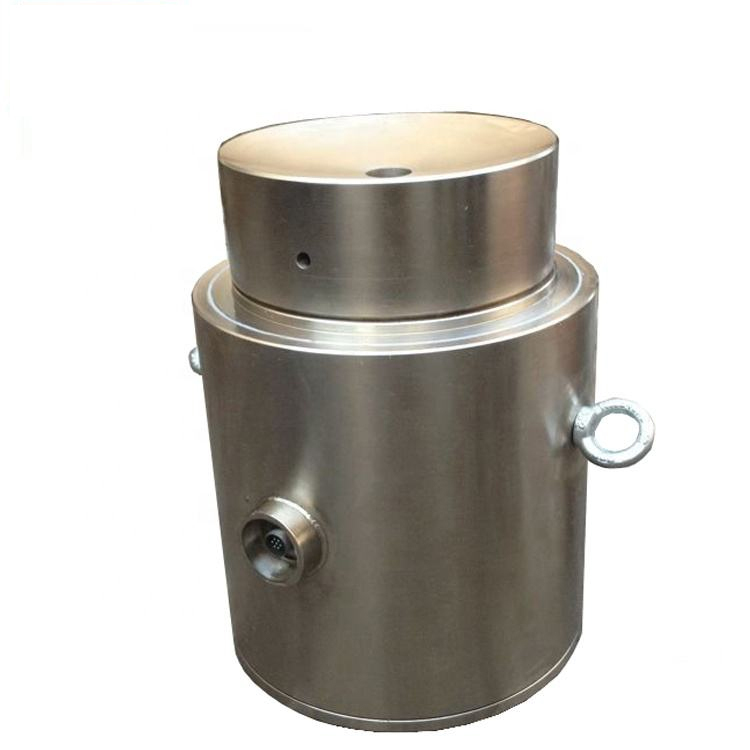

Compression Type Canister Style 30 ton 300 ton Load Cell 500ton 1000ton Load Cell Weight Sensor
Features:
1, Material: Alloy steel with IP66/ IP67 waterproof.
2, Application: hydraulic jack,Truck and railway scales, tank and silo weighing and in heavy duty industrial scales.
3, Optional accessories: Indicator / display, junction box.
Parameters:
| Application |
hydraulic jack |
| Model |
RJ |
| Capacity |
10T, 20T, 30T, 40T, 60T, 70T, 100T, 200T, 300T, 500t, 700t, 1000t, 2000t, 3000t |
| rated output |
2.0±0.004mV/V |
| Accuracy class |
C2 C3 |
| maximum number of verification intervals |
2000 Nmax 3000 Nmax |
| Minimum loadcell cerification intervals |
Emax/5000Vmin Emax7500 Vmin |
| Combined error |
≤±0.030 % RO ≤±0.020 % RO |
| Creep |
0.026 %RO/30min 0.018 %RO/30min |
| Temp. effect on sensitivity |
0.0015 %RO/℃ |
| Temp.effect on zero |
0.0026%RO/℃ 0.0018%RO/℃ |
| Zero balance |
±1.0 %RO |
| Input resistance |
670±10 ohm 1050±10 ohm |
| Output resistance |
605±5 ohm 1000±5 ohm |
| insulation resistance |
5000 MΩ(50V) |
| Recommended excitation voltage |
10-18V |
| Compensated temperature range |
-10-+40℃ |
| operating temperature range |
-35-+80 ℃ |
| safe overload |
150 %RO |
| Ultimate overload |
300%RO |
| loadcell material |
Alloy steel stainless steel |
| Connecting cable |
10-30T Φ6.3x13m 40-300T Φ6.3x20m |
| Method of connecting wire |
Red- input+, black- Input-. Green- Output+, White- output - |
Packing & Transport
FAQ
Q: How can I get the quotation?
Please send your inquiry to us.
Click 'Contact Supplier' icon which is on the right-side or write down your requirement at the bottom of this page.
Q: What detailed information do I need to provide if I want to place an order?
We need to know the following information:
Capacity, Usage and other related parameters you need.
Q: Do you have any discount?
Yes, we take bulk order, if you buy large QTY, please send us inquiry, we can discuss the price.
Q: Can I get samples?
Yes, if you have the follower orders, we could offer the samples or free samples for you.
Q: How about the quality of the products?
We have the certification of CE and RoHs , also we are the Alibaba's verified supplier, you don't have to worry about this.
Q: When will you arrange the production?
We will arrange the production immediately after receiving your payment.
Q: Could you provide me the shortest lead time?
We have materials in our stock, if you really need, let's discuss and we will try our best to satisfy you.
