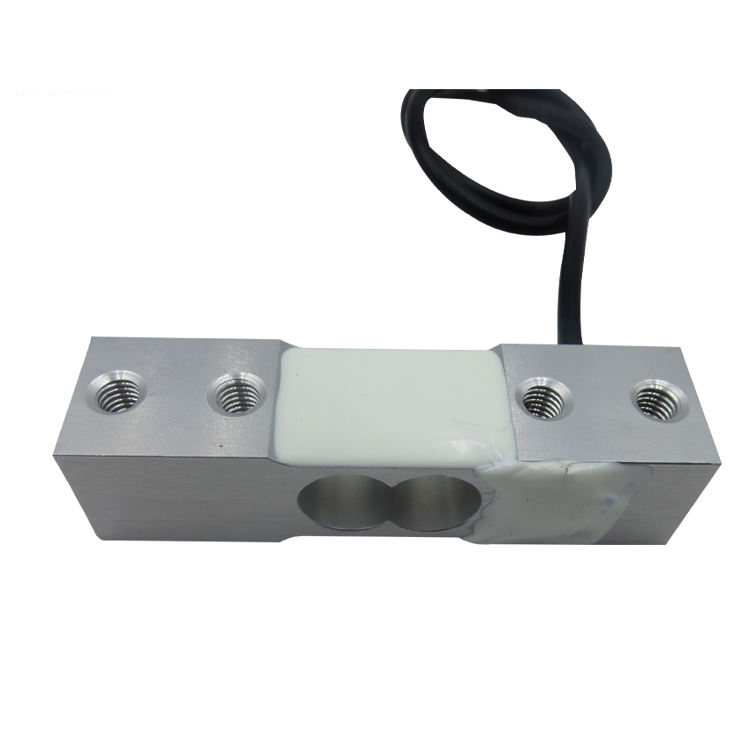

Truck 50 Ton Weighing Scale Load Cell
Load cells are used in smart devices, smart vending cabinets, smart garbage bins, weight detection equipment, etc., and are easy to install and operate.
|
|
|
Rated Output
|
mv/v
|
2.0±0.2
|
|
Non-linearity
|
%F.S
|
0.03%F.S
|
|
Hysteresis
|
%F.S
|
0.03
|
|
Repeatability
|
%F.S
|
0.03
|
|
Creep
|
%F.S/3min
|
0.03
|
|
Temp.effect on zero
|
%F.S/10℃
|
0.03%F.S
|
|
Temp.effect on span
|
%F.S/10℃
|
0.05%F.S
|
|
Zero balance
|
mv/v
|
±0.05
|
|
Input impedance
|
Ω
|
405±6
|
|
Output impedance
|
Ω
|
350±5
|
|
Insulation resistance
|
MΩ
|
≥2000(100VDC)
|
|
Recommended excitation voltage
|
VDC
|
3~12
|
|
Allowed excitation voltage
|
VDC
|
3~12
|
|
Compensated temp.Range
|
℃
|
-10℃~+40℃
|
|
Operating temp.Range
|
℃
|
0℃~+40℃
|
|
Safe overload
|
%F.S
|
120
|
|
Ultimate Overload
|
%F.S
|
150
|
|
Connection
|
Excitation: Red:+ Black:-
|
|
Signal: Green:+ White:-
|
