Stainless Steel Thread Load Cell 1KN-50KN Force Sensor

جزئیات محصول:

محل منبع:	چین
نام تجاری:	RJ
گواهی:	CE/ROSE
شماره مدل:	RJ

اطلاعات دقیق

محل منبع:

چین

نام تجاری:

گواهی:

CE/ROSE

شماره مدل:

استفاده:

سنسور توزین

نوع نصب:

تثبیت پیچ

توضیحات:

سنسور وزن سنسور نیروی LoadCell

نوع:

حسگر قدرت

ظرفیت:

1kn kn 50kn

مواد:

فولاد ضد زنگ آلیاژ

برجسته کردن:

High Light

برجسته کردن:

Stainless Steel Thread Load Cell,1KN-50KN Force Sensor,High Capacity Load Cell Sensor

1KN-50KN Force Sensor

High Capacity Load Cell Sensor

اطلاعات تجاری

مقدار حداقل تعداد سفارش:

قیمت:

$35~38

جزئیات بسته بندی:

کارتن یا جعبه چوبی

زمان تحویل:

5 تا 8 روز کاری

شرایط پرداخت:

L/C، D/A، D/P، T/T، وسترن یونیون

قابلیت ارائه:

2000 PC/ماه

توضیحات محصول

Stainless Steel Thread Tension Load Cell Alloy Steel Round Load Cell Compression Load Cell

Specifications
Rated Output	mv/v	1.5±0.1
Non-linearity	%F.S	0.2%F.S
Hysteresis	%F.S	0.1
Repeatability	%F.S	0.1
Creep	%F.S/3min	0.2
Temp.effect on zero	%F.S/10℃	0.05%F.S
Temp.effect on span	%F.S/10℃	0.05%F.S
Zero balance	mv/v	±0.05
Input impedance	Ω	780±20
Output impedance	Ω	700±10
Insulation resistance	MΩ	≥5000(100VDC)
Recommended excitation voltage	VDC	5~15
Allowed excitation voltage	VDC	5~15
Compensated temp.Range	℃	-10℃~+60℃
Operating temp.Range	℃	-20℃~+80℃
Safe overload	%F.S	120
Ultimate Overload	%F.S	150
Connection	Excitation: Red:+ Black:-
Connection	Signal: Green:+ White:-

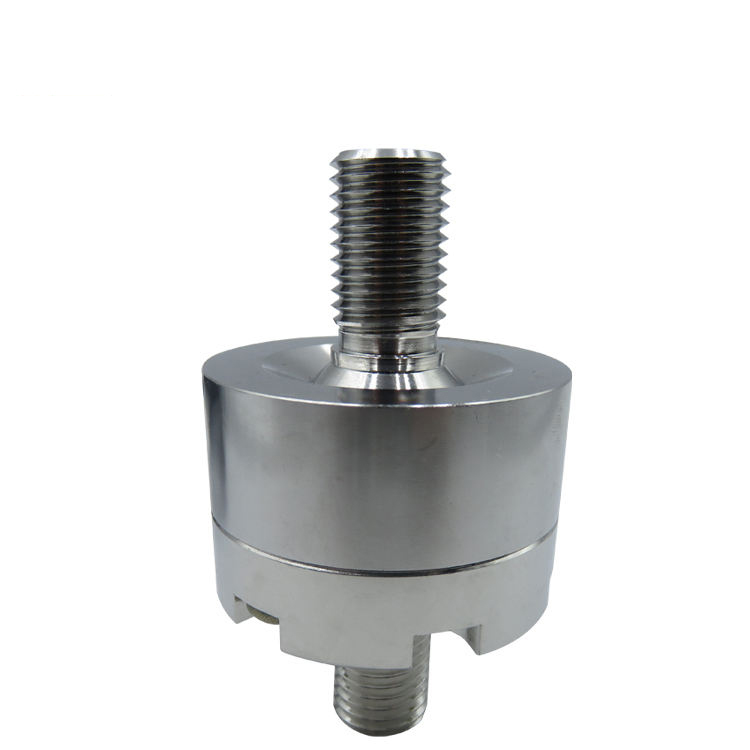

Stainless Steel Thread Load Cell 1KN-50KN Force Sensor 0

Stainless Steel Thread Load Cell 1KN-50KN Force Sensor 1

Stainless Steel Thread Load Cell 1KN-50KN Force Sensor 2

Stainless Steel Thread Load Cell 1KN-50KN Force Sensor 3

Packing & Transport

Stainless Steel Thread Load Cell 1KN-50KN Force Sensor 4
