Dual-Head Threaded Pressure Sensor -1bar to 1000bar 4-20mA Output

جزئیات محصول:

محل منبع:	چین
نام تجاری:	RJ
گواهی:	CE/ROSRE
شماره مدل:	RJ

اطلاعات دقیق

محل منبع:

چین

نام تجاری:

گواهی:

CE/ROSRE

شماره مدل:

نام محصول:

سنسور فشار نخ دو سر

محدوده اندازه گیری:

-1bar ~ 0 ~ 1000bar (سفارشی سازی پشتیبانی)

سیگنال خروجی:

4-20ma ، 0-5 ولت ، 1-5 ولت ، 0.5-4.5 ولت ، دیگران

منبع برق:

5V DC ، 12-36V DC

دقت:

0.25 ٪ ، 0.1 ٪ FS

محیط اندازه گیری:

مایع، گاز، بخار، روغن، هوا

برجسته کردن:

High Light

برجسته کردن:

dual-head threaded pressure sensor,high-pressure sensor 4-20mA output,pressure sensor 1bar to 1000bar

high-pressure sensor 4-20mA output

pressure sensor 1bar to 1000bar

اطلاعات تجاری

مقدار حداقل تعداد سفارش:

قیمت:

$12

جزئیات بسته بندی:

کارتن یا جعبه چوبی

زمان تحویل:

5 تا 8 روز کاری

شرایط پرداخت:

L/C،D/A،D/P،T/T،Western Union،MoneyGram

قابلیت ارائه:

2000 PC/ماه

توضیحات محصول

High Cost-Performance DC Double-Head Threaded Pressure Transmitter for Metallurgical and Ceramic Industries

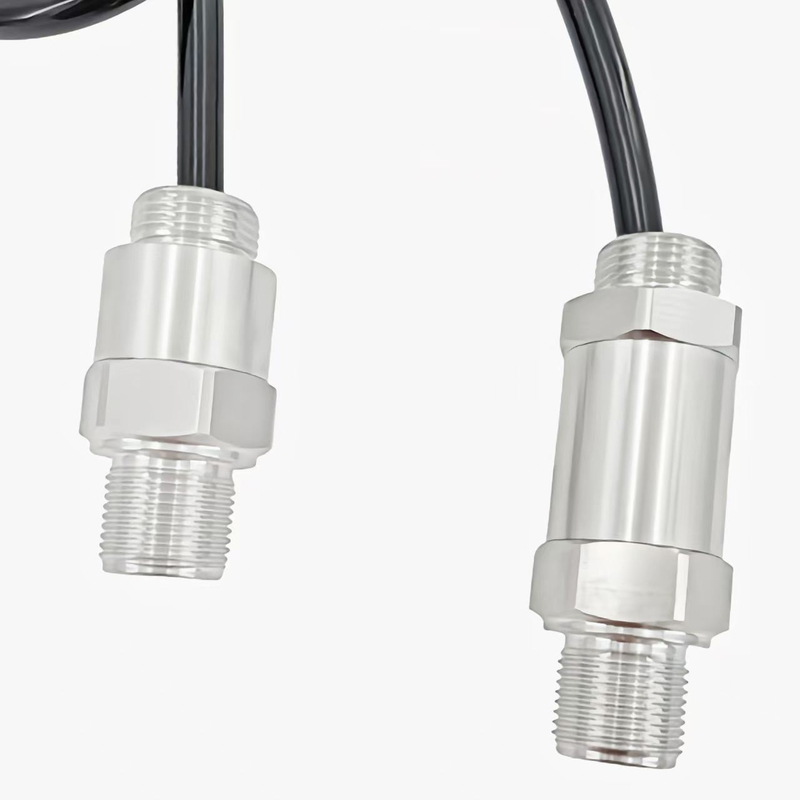

Dual-Head Threaded Pressure Sensor -1bar to 1000bar 4-20mA Output 0

Model	RJ
Pressure range	-1bar~0~1000bar(Support customization)
Pressure form	Gauge pressure,negative pressure,Absolute pressure
Maximum overload	1.5 times of rated pressure
Precision grade	0.2% 0.1%
output signal	4-20mA, 0-5V, 0-10V, RS485
Power supply voltage	12 to 36VDC
Load resistance	≤500Ω
Measuring medium	Liquid, gas, steam
Long-term stability	±0.2% F.S/year
Relative humidity of the environment	0 to 90%
Operating temperature	-10～70℃
Pressure interface material	All stainless steel integrated
Process Connection	1/4NPT,1/2NPT,G1/2",G1/4(Support customization)
Diaphragm material	316L, tantalum, HC or user-defined

Dual-Head Threaded Pressure Sensor -1bar to 1000bar 4-20mA Output 1

Applicable

Dual-Head Threaded Pressure Sensor -1bar to 1000bar 4-20mA Output 2

Dual-Head Threaded Pressure Sensor -1bar to 1000bar 4-20mA Output 3

Product packaging

The packaging is meticulously crafted with thickened multi-layer corrugated boxesand biodegradable pearl cotton for double protection. The corrugated boxes arethick and resistant to compression, while the pearl cotton is flexible and shock-absorbing, moisture-proof, shock-proof, and anti-static.lt emphasizes thecombination of environmental protection and quality, fully showcasing a luxurious style.

Dual-Head Threaded Pressure Sensor -1bar to 1000bar 4-20mA Output 4
